Tracked electric UGV

HECTHOR

A rugged unmanned vehicle for firefighting, rescue, agriculture and inspection. One platform for every mission.

Range: 80 km
Towing capacity: 25 t
Payload: 750 kg
Top speed: 8 km/h
Drive: 2 × 40 kW
Datalink: 3–5 km

Interactive 3D model

01Overview

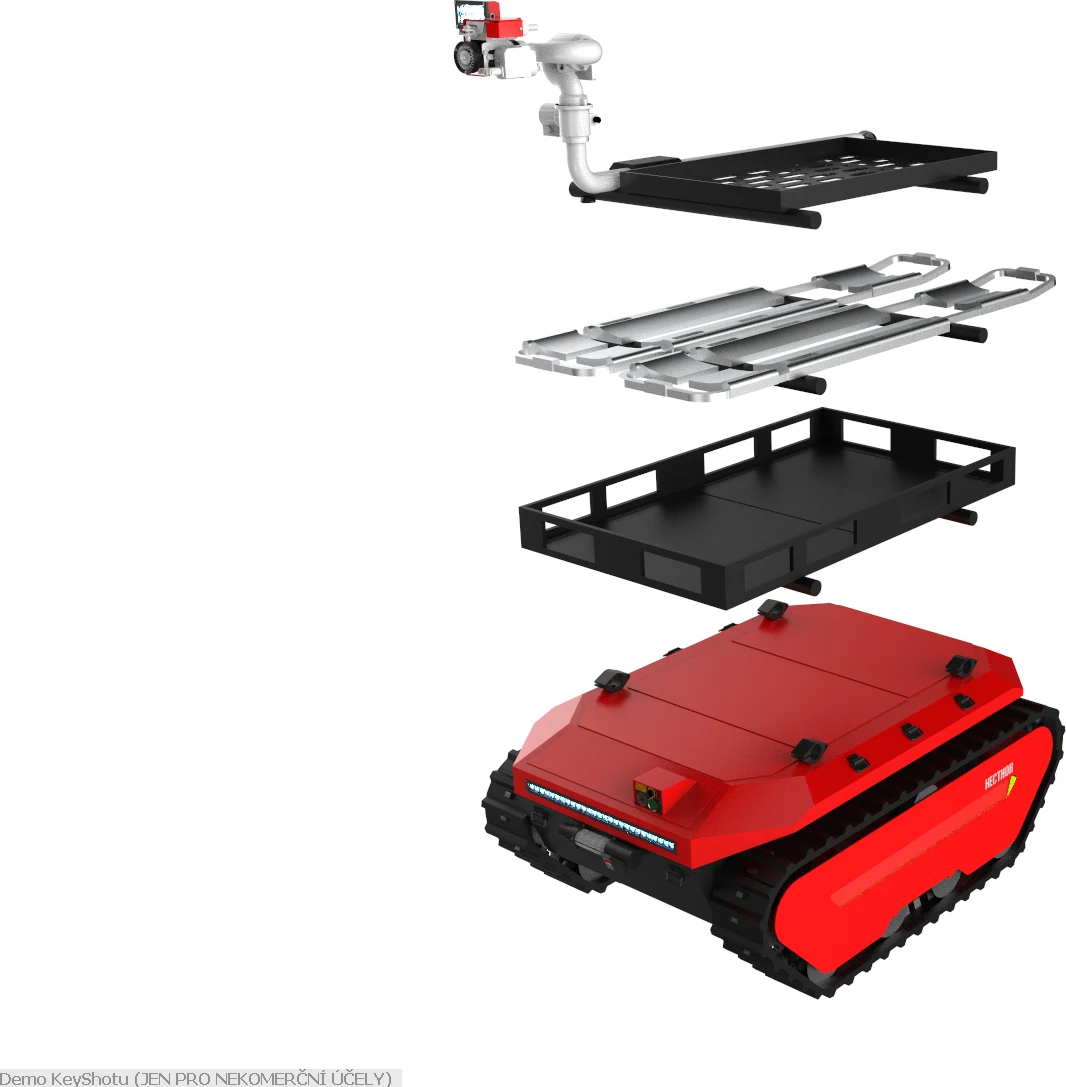

HECTHOR is a tracked electric unmanned vehicle for work that would put people in danger. A water cannon, stretchers or a cargo module fit onto the one platform without tools, so the same machine fights fires, evacuates and hauls. It tows 25 t, carries 750 kg and its 15.6 kWh battery lasts 10–12 hours of operation. The operator drives it from 3–5 km away with a live thermal camera feed; the range can be extended with a relay antenna or via 5G, LTE or Starlink. IP65 protection and electronics rated from −40 °C to +105 °C.

02Versions

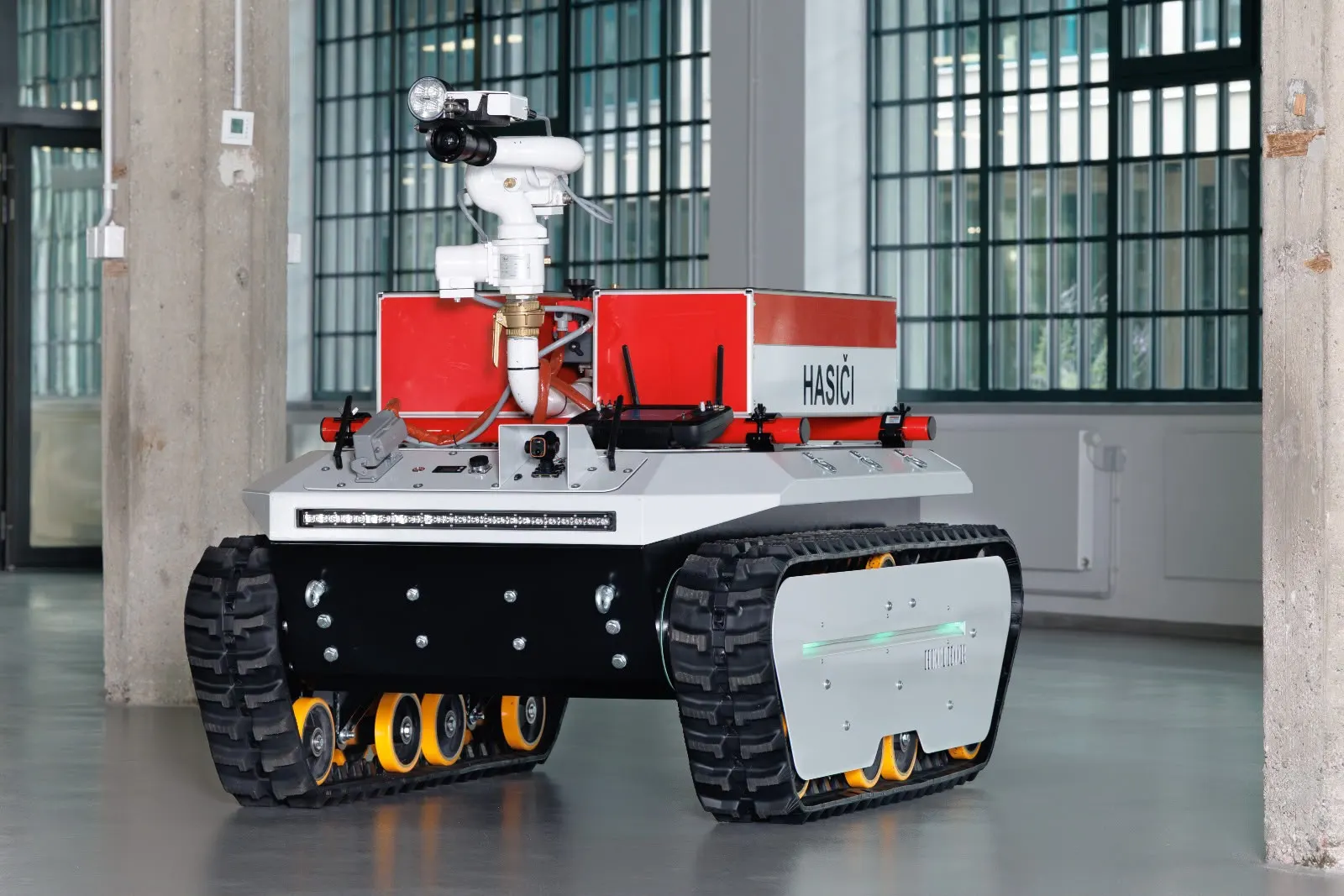

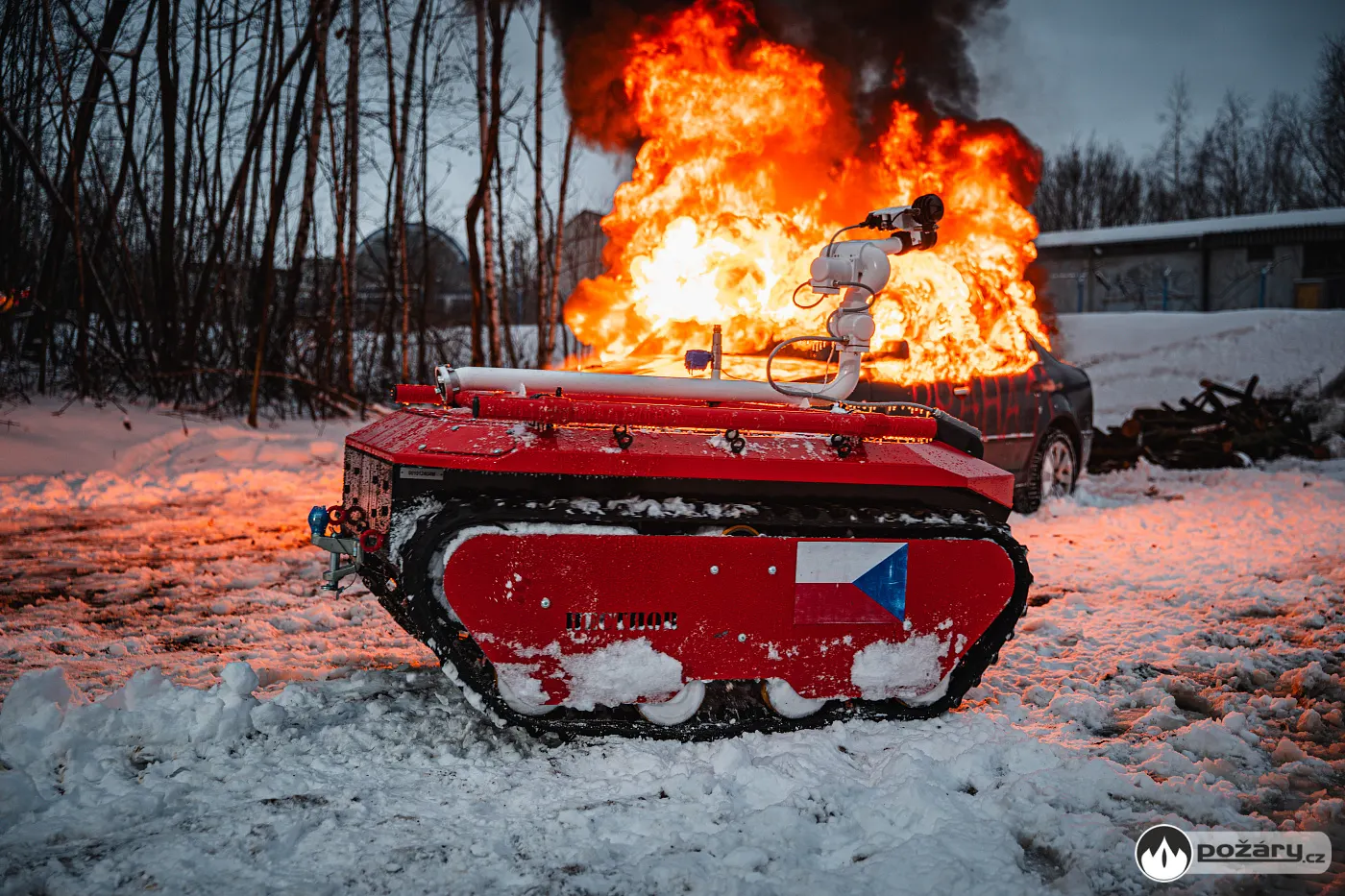

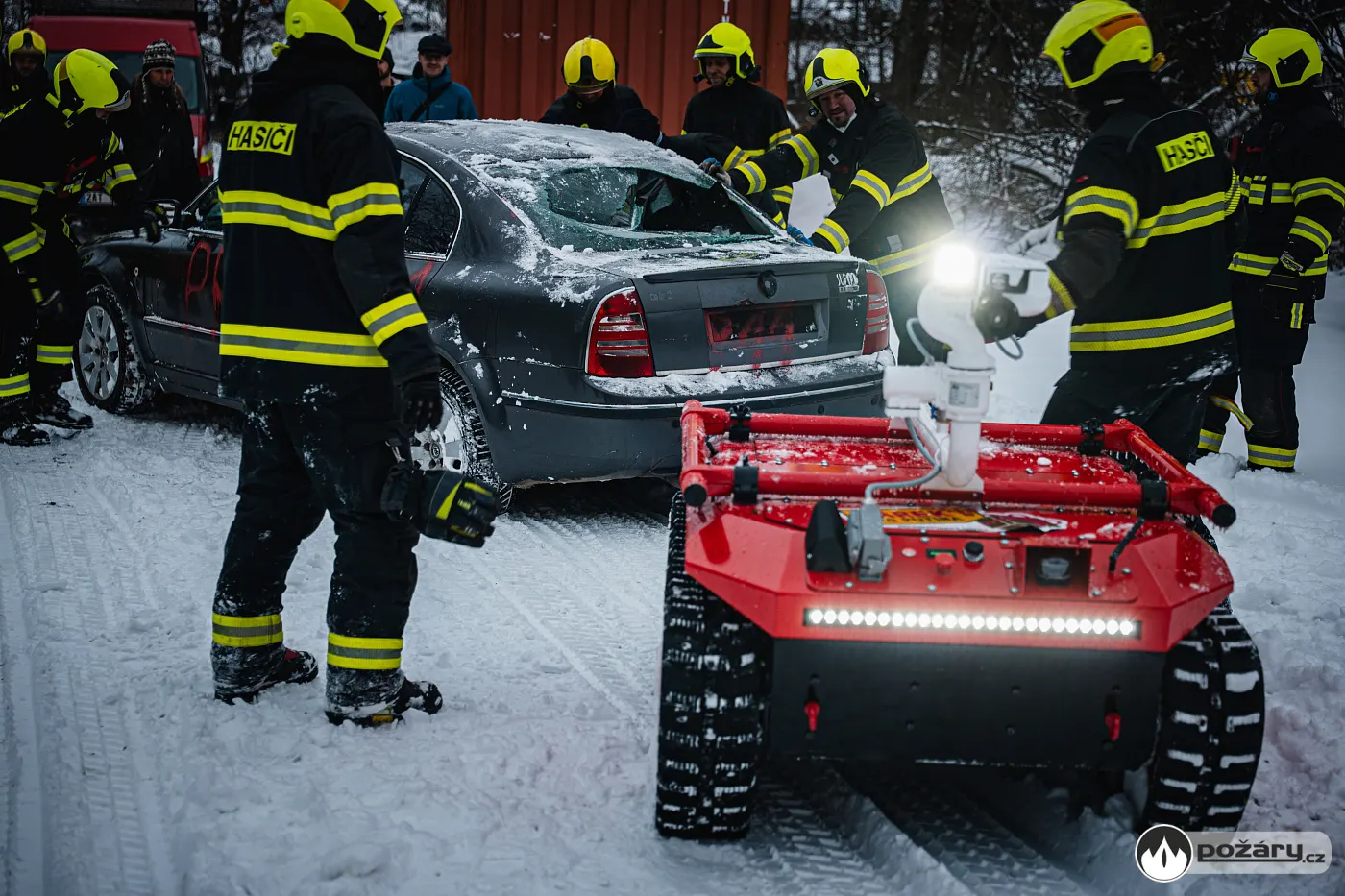

Firefighting version

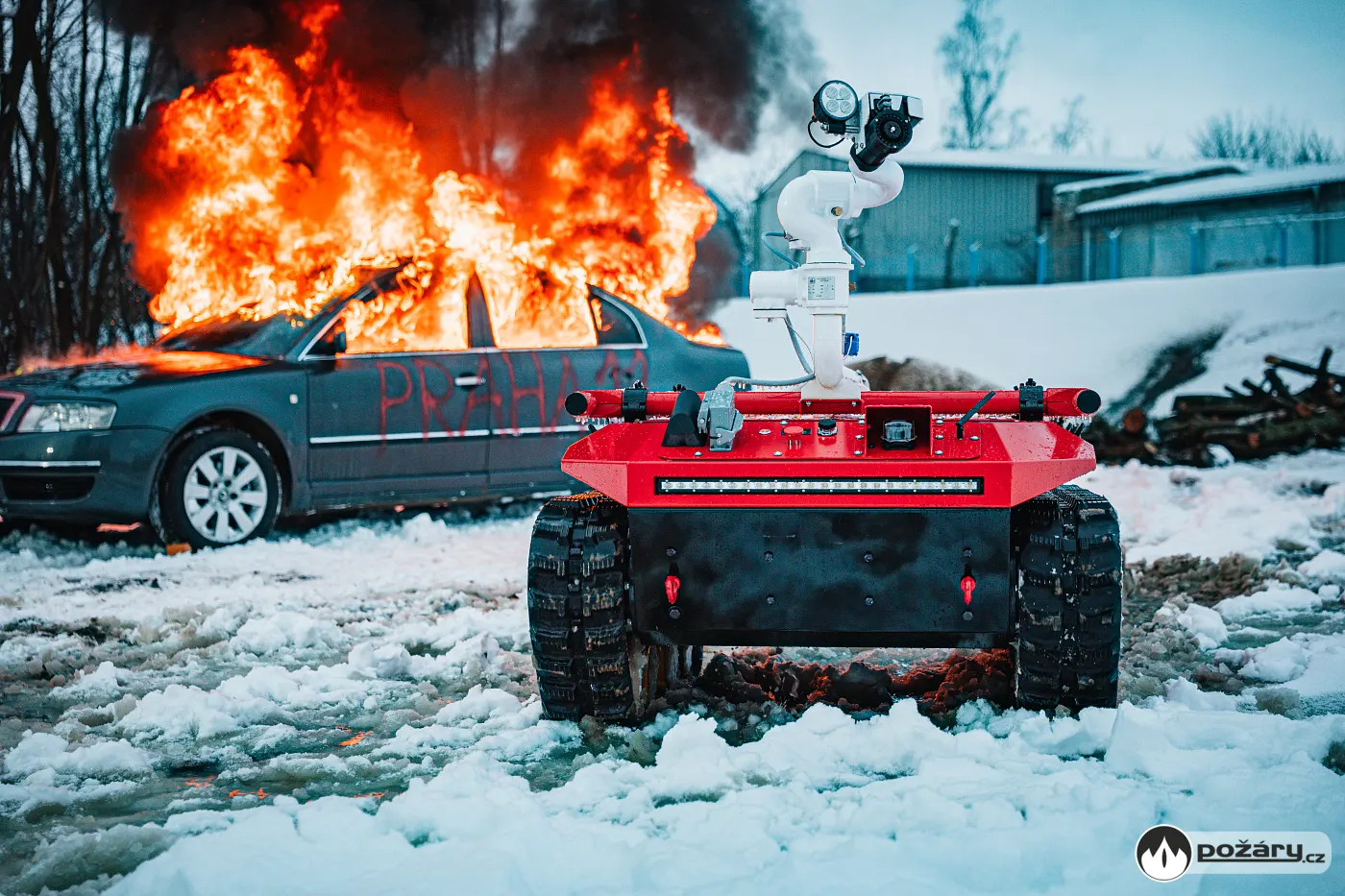

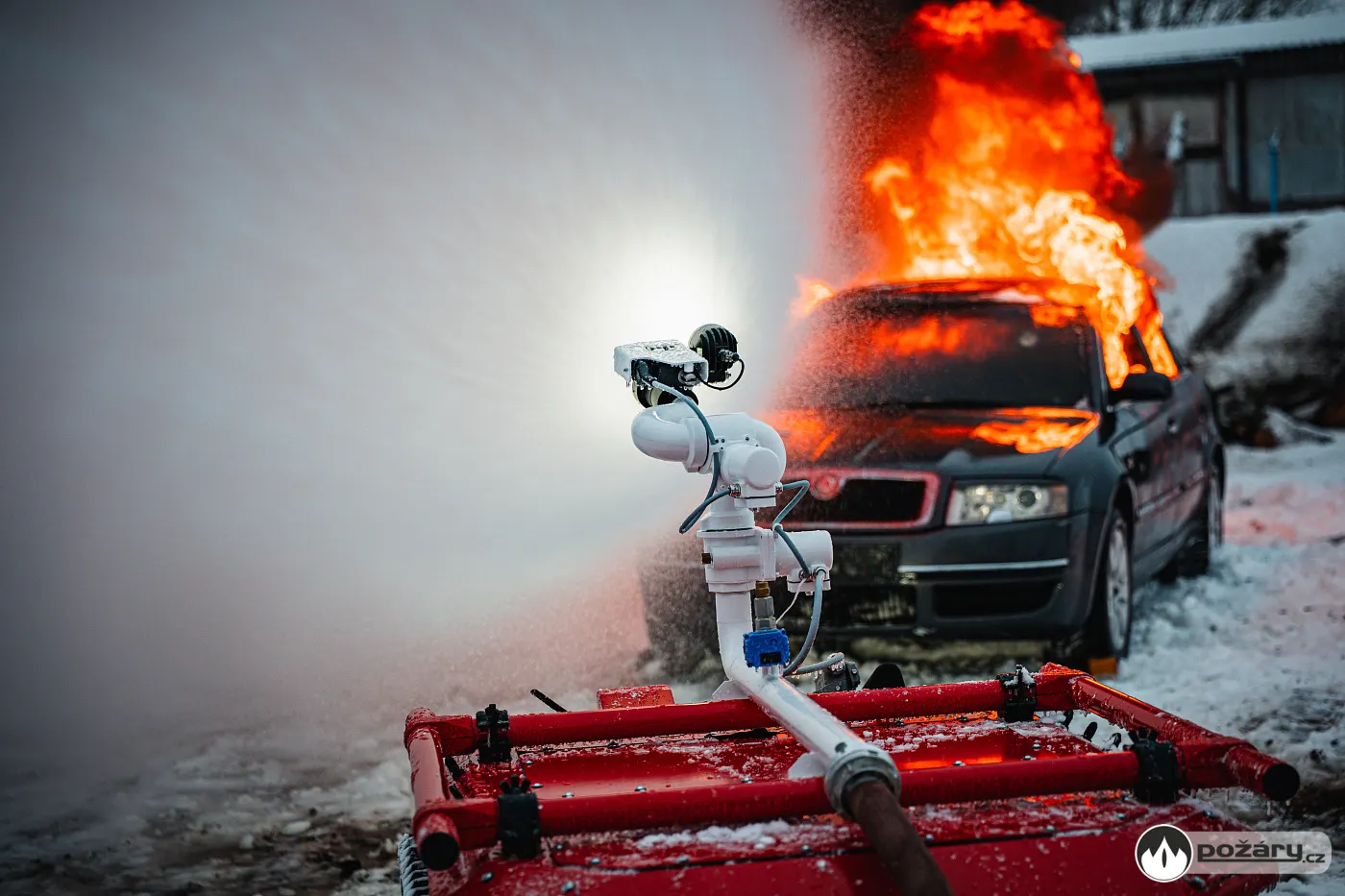

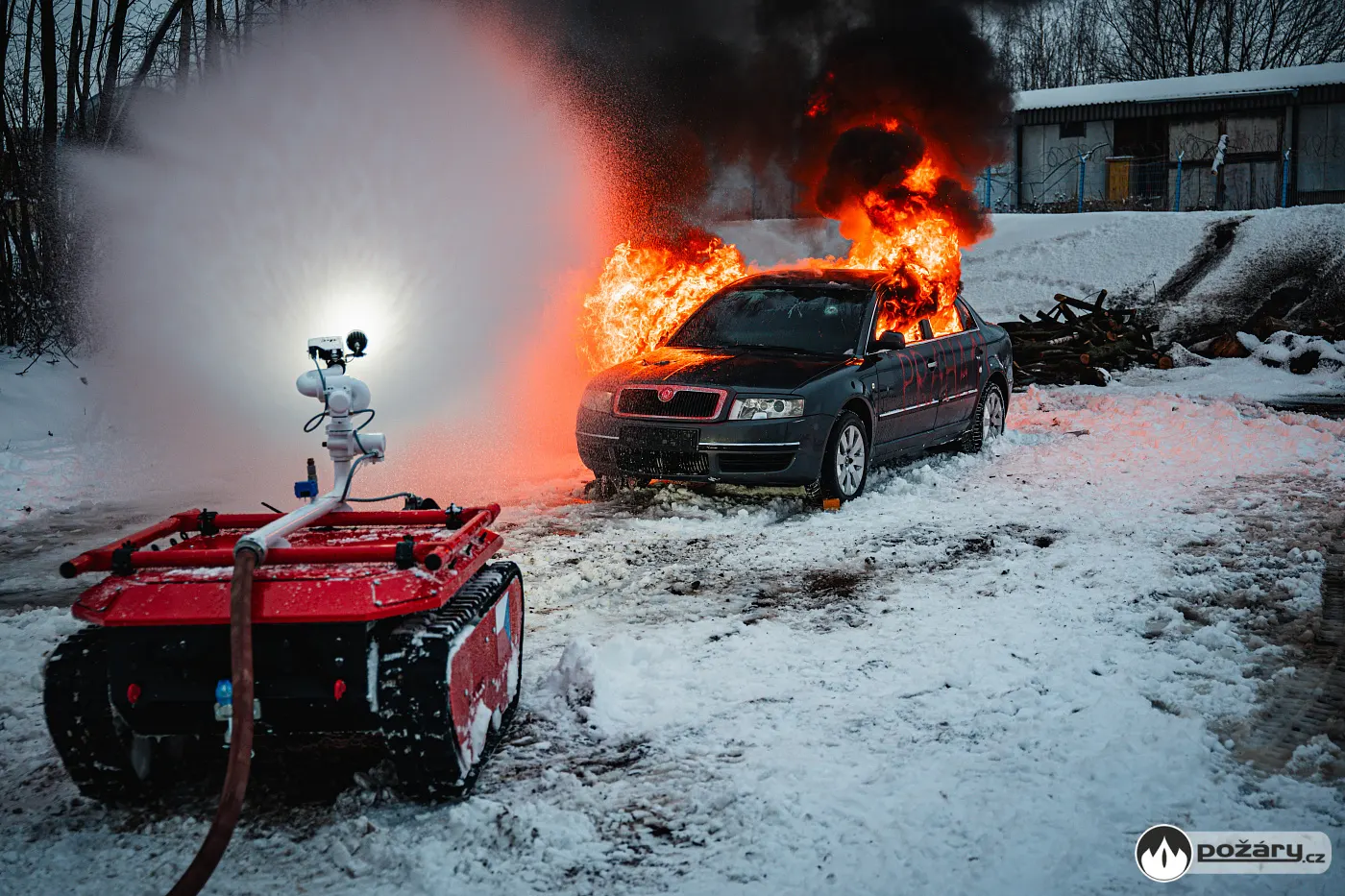

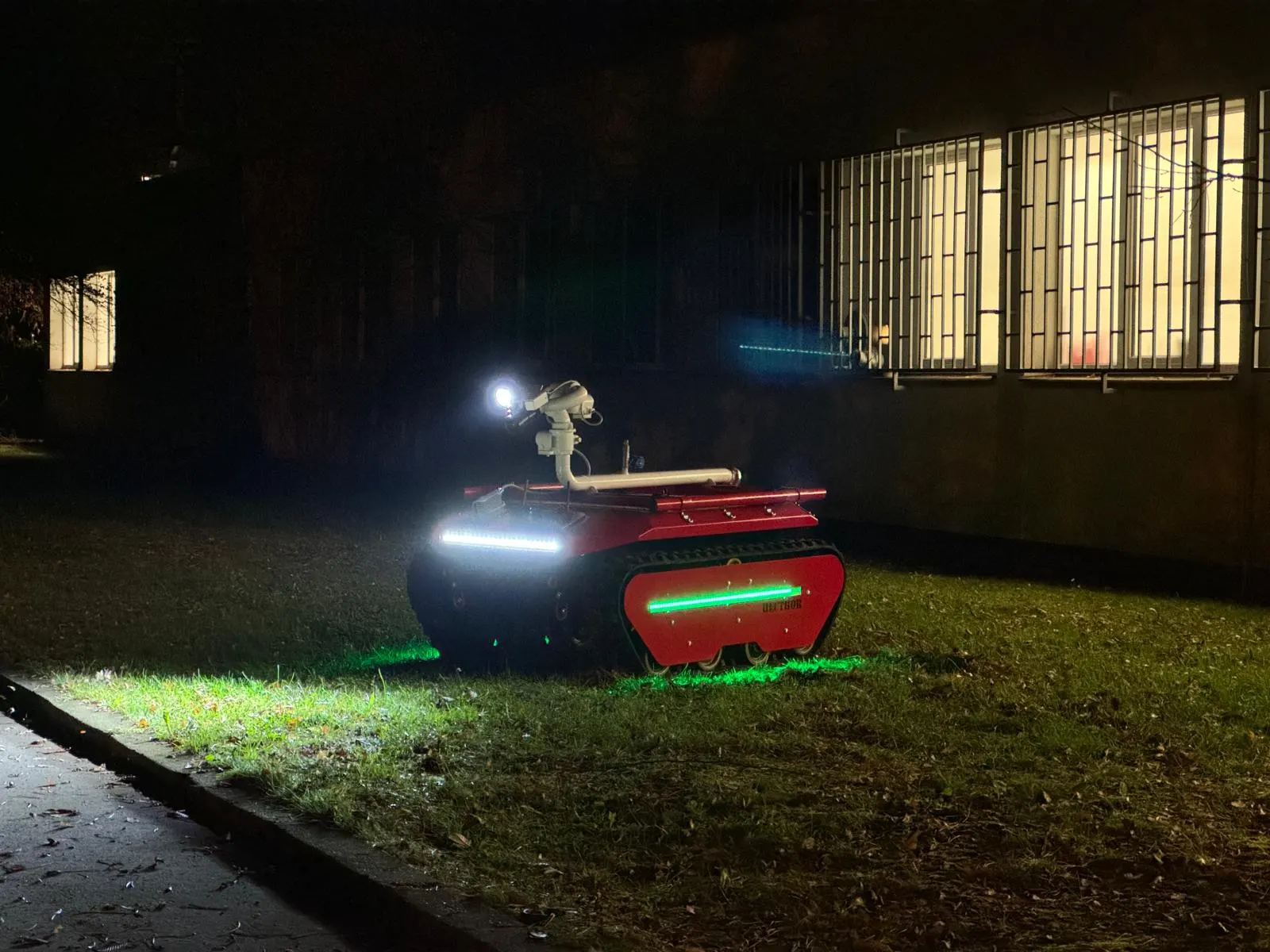

Water monitor with a thermal camera, signal red and warning lights. It goes to the fire instead of the firefighter — to burning cars, into warehouses and to forest fires.

03In action

Fording a water obstacle
Climbing stairs

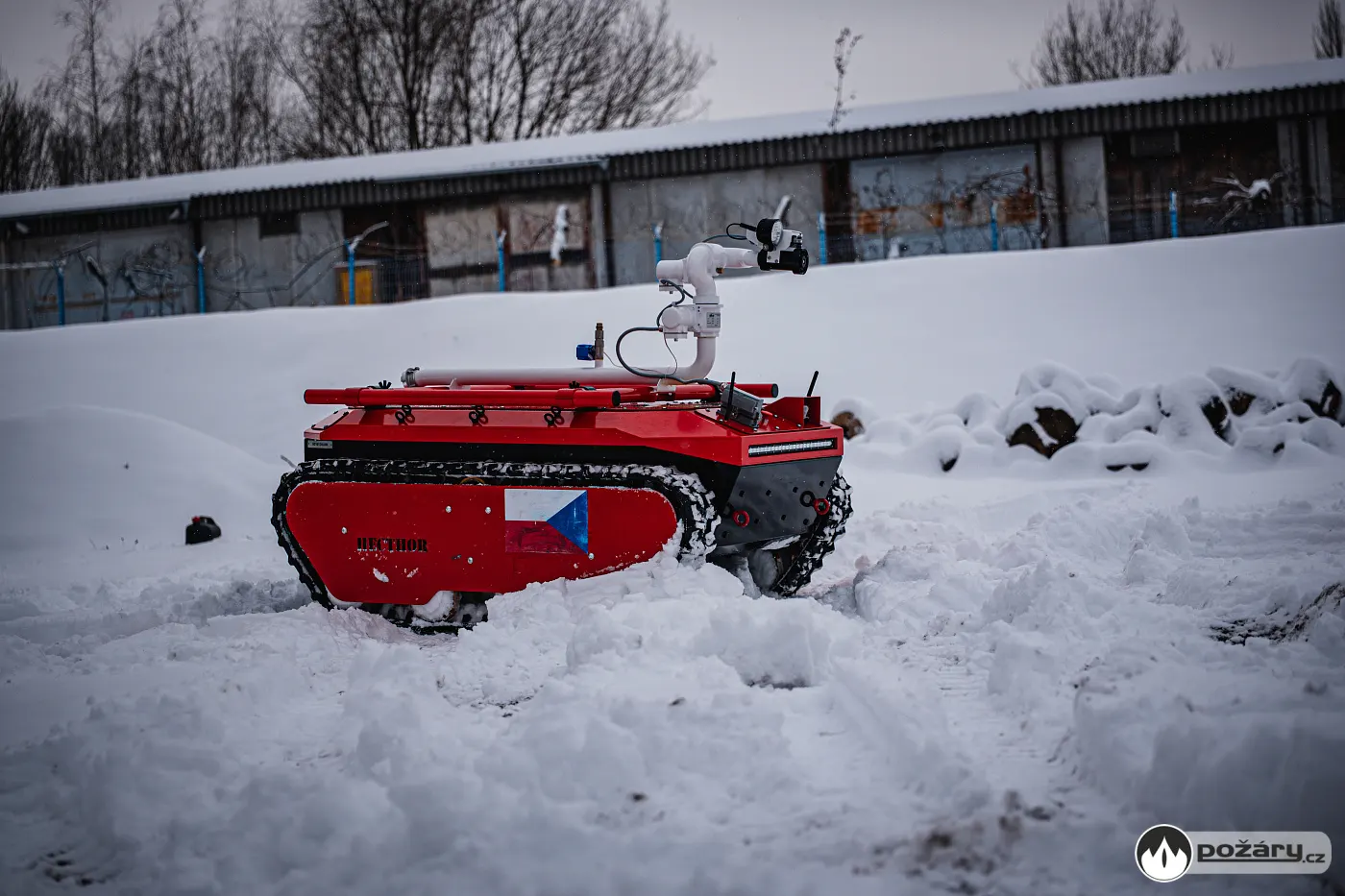

Off-road driving

04Videos

HECTHOR in action

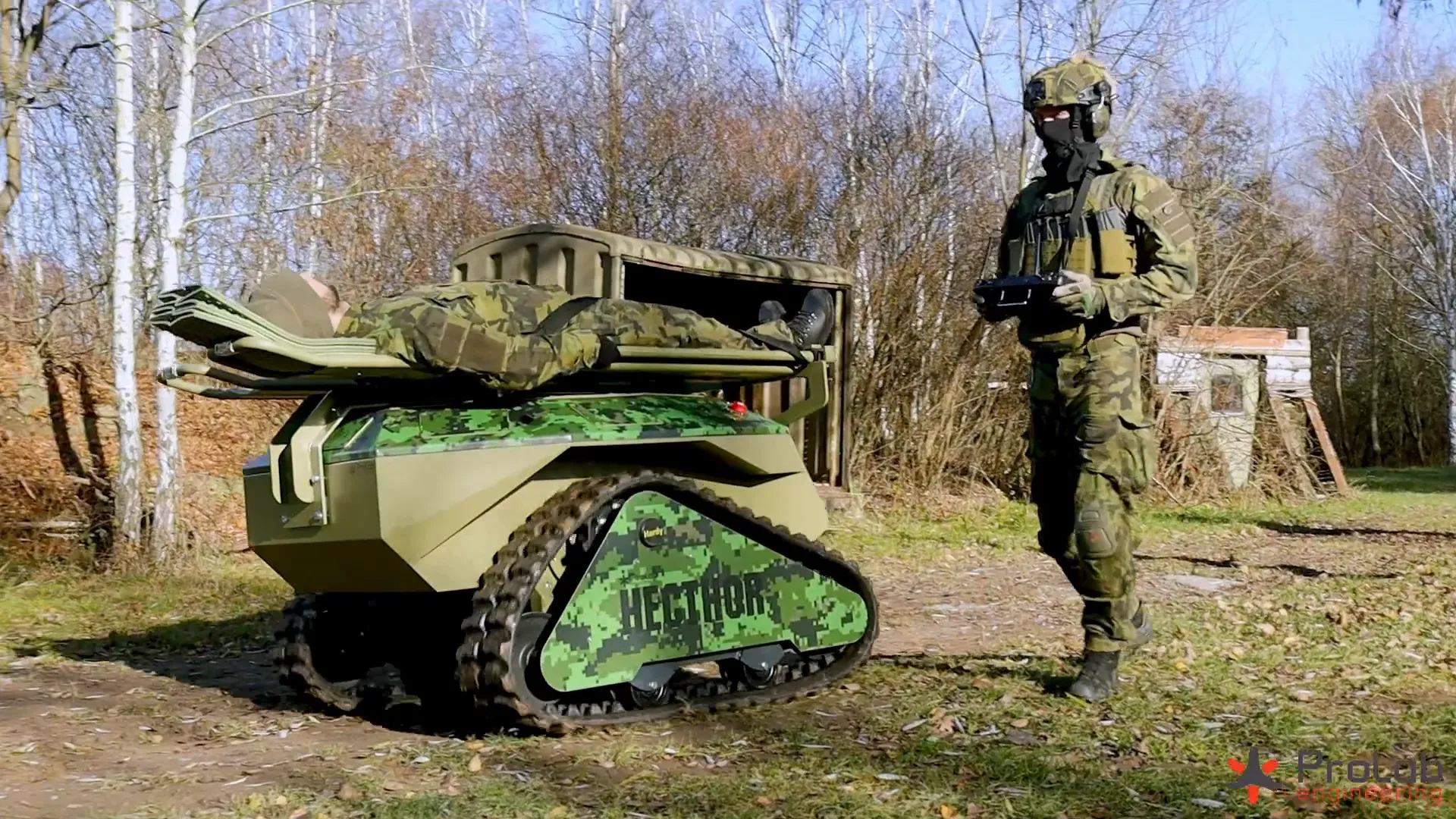

Firefighting, casualty evacuation and towing an aircraft — every role of HECTHOR in one film.

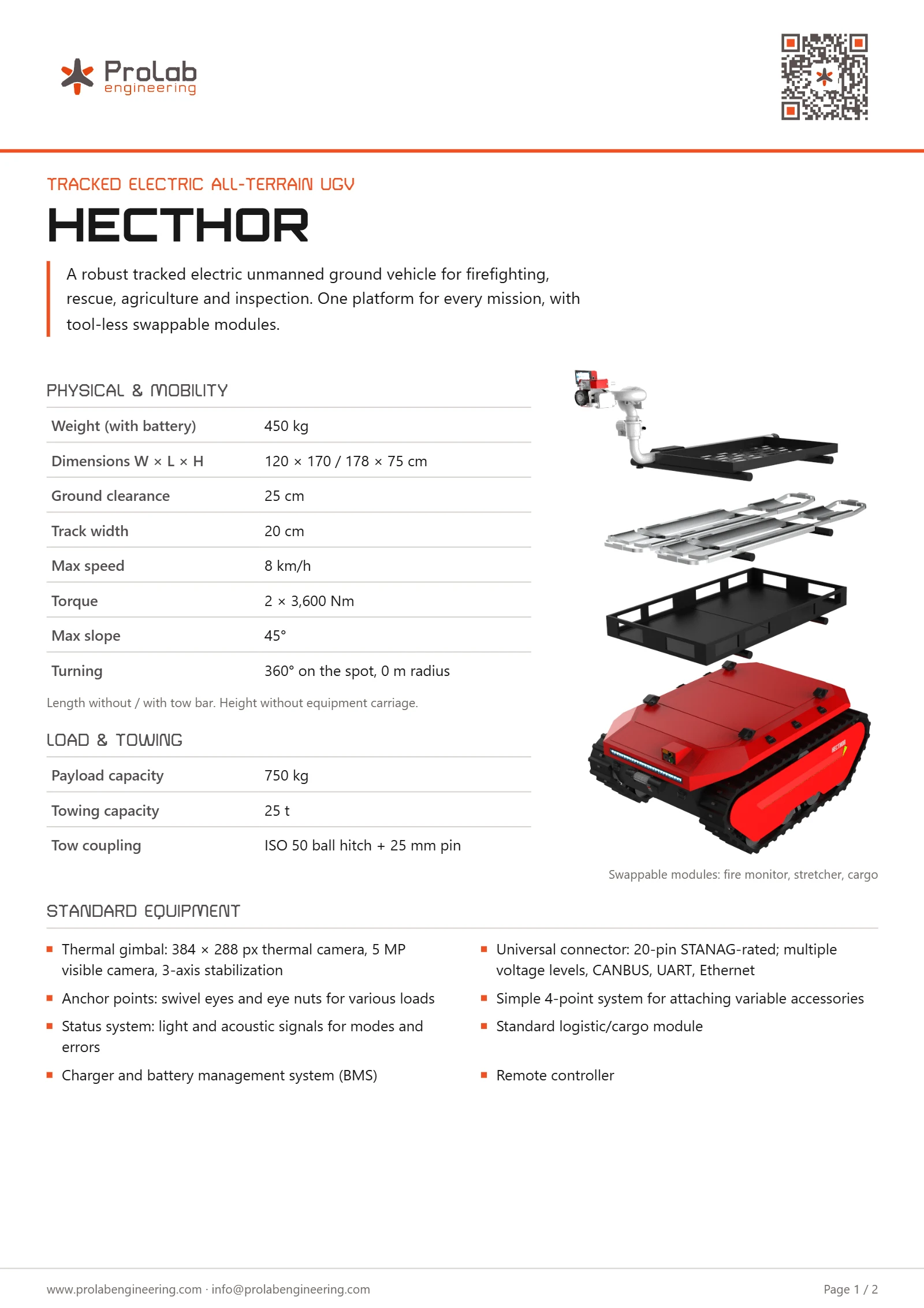

05Specifications

Dimensions and mobility

Weight (with battery)	450 kg

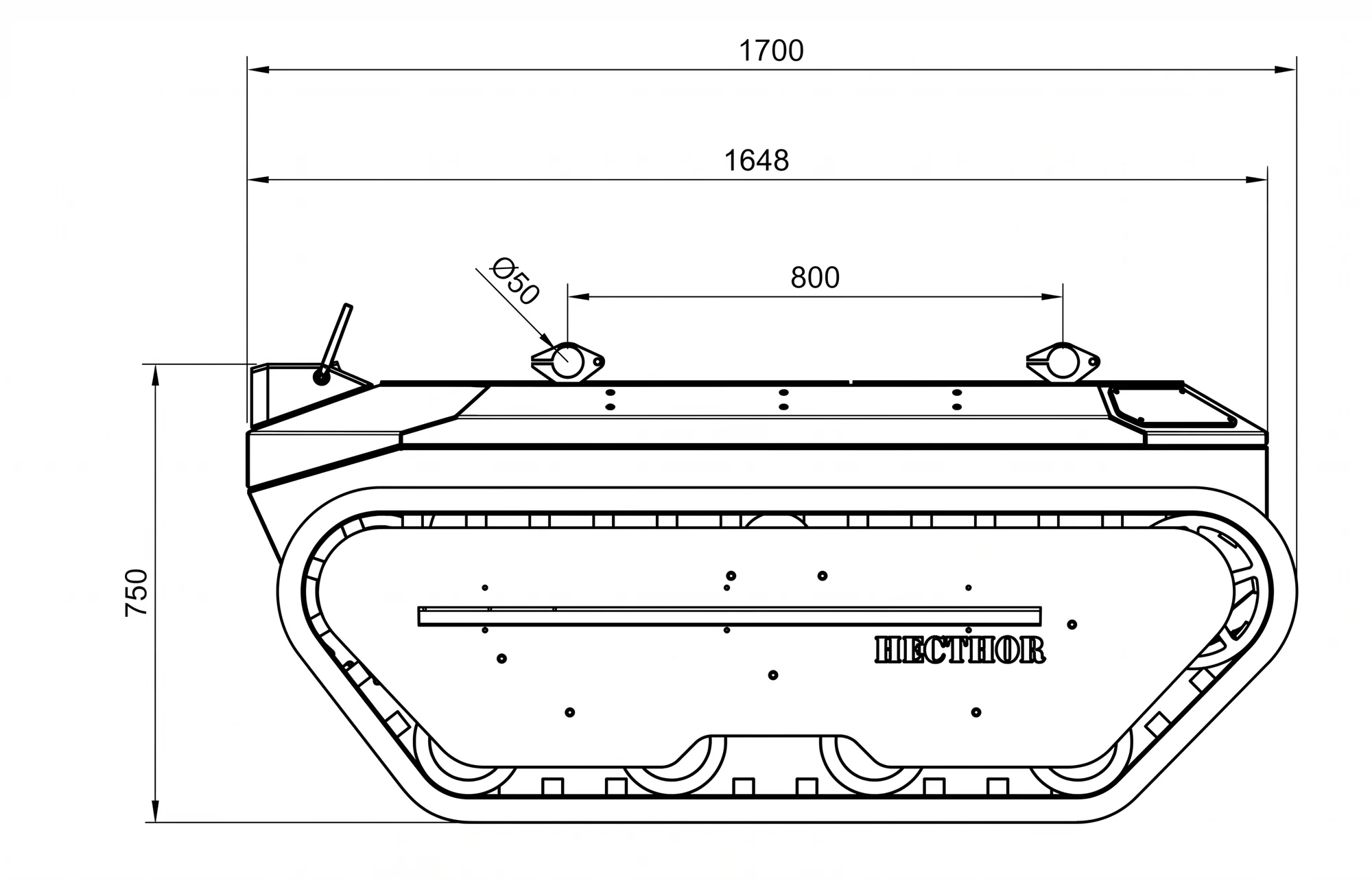

Dimensions W × L × H	120 × 170 / 178 × 75 cm (length without / with hitch)
Ground clearance	25 cm
Track width	20 cm
Top speed	8 km/h
Torque	2 × 3,600 Nm
Max. gradient	45°
Turning	360° on the spot, zero radius

Payload and towing

Payload	750 kg
Towing capacity	25 t

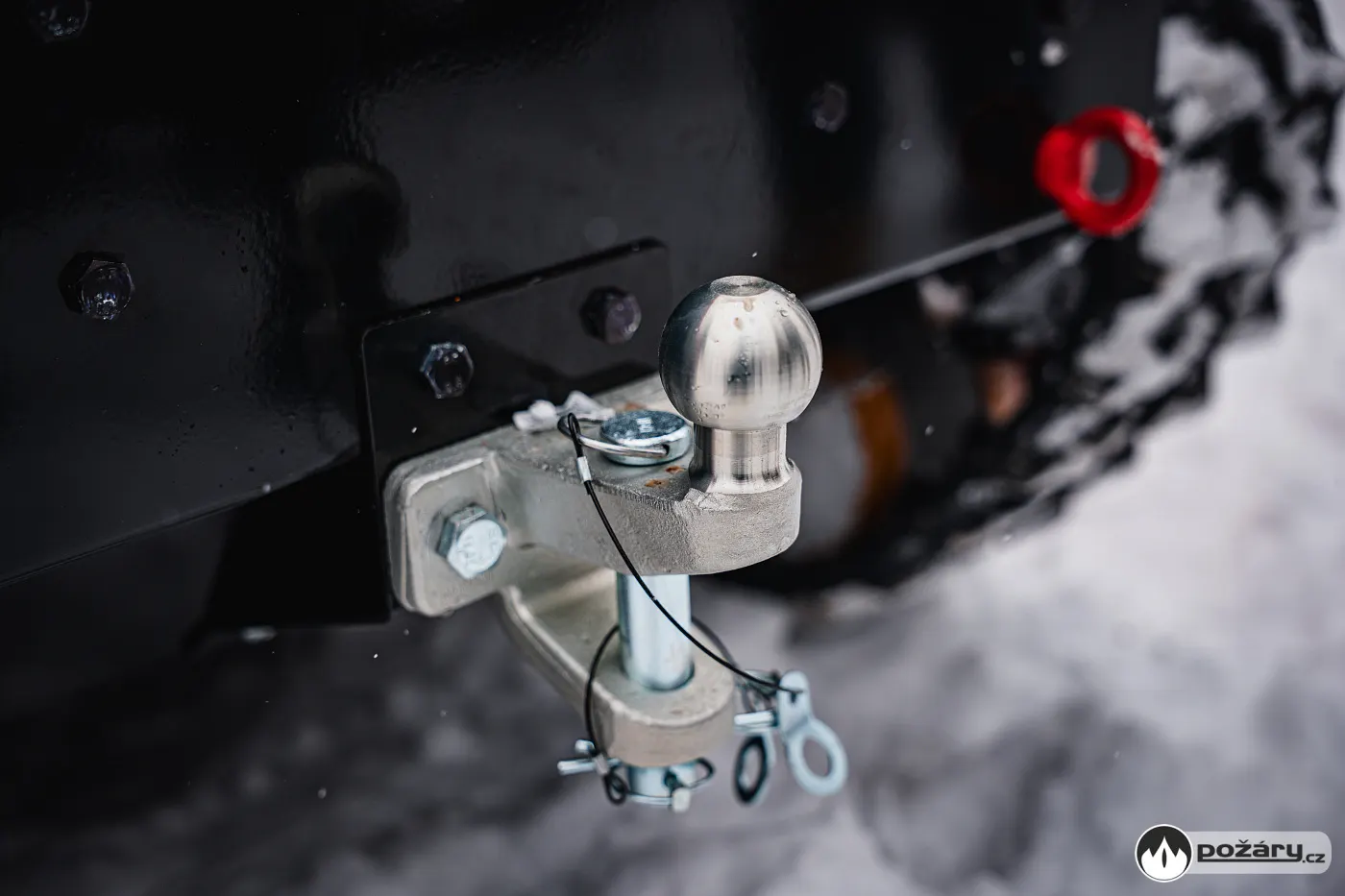

Hitch	ISO 50 ball + 25 mm pin

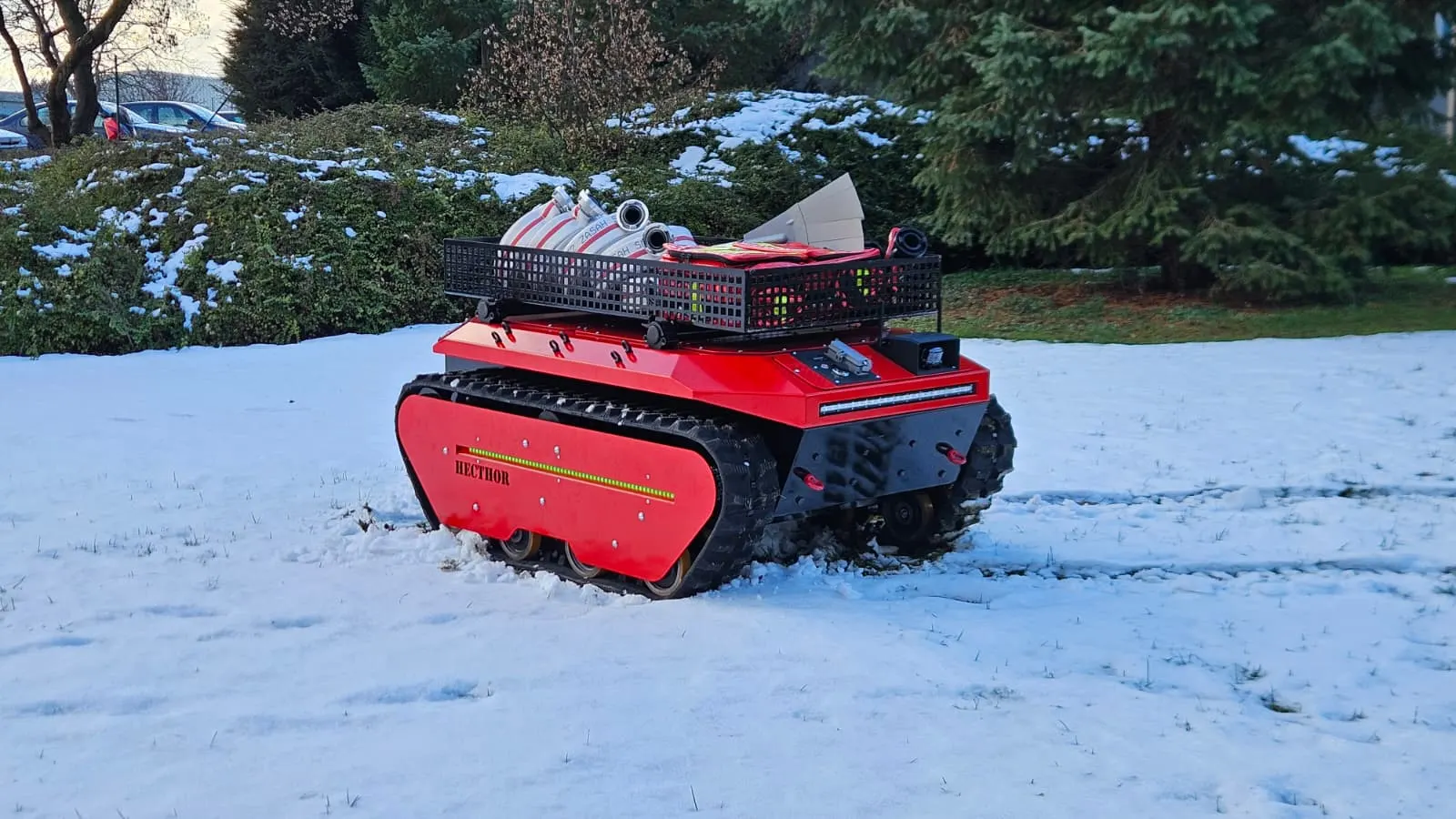

Swappable modules	Water cannon, stretchers, cargo — no tools needed

Powertrain

Motors	2 × 40 kW (software-limited to 2 × 20.48 kW), two-stage planetary gearbox
Battery	15.6 kWh LiFePO4
Operating time	10–12 h
Charging time	3 h
Range	80 km

Control and communication

Datalink range	3–5 km, extendable with a relay antenna or a 5G / LTE / Starlink module
Video transmission	1080p / 60 fps, 150 ms latency
Navigation	GPS with route planner
Connectivity	Datalink for two operators, any camera or gimbal via LAN / HDMI
Stability sensors	Redundant, temperature-stabilised tilt sensors with rollover detection

Environment

Electronics operating temperature	−40 °C to +105 °C
Ingress protection	IP65, fords up to the top of the tracks
Made in	Czech Republic

Standard equipment

Thermal gimbal	384 × 288 px thermal camera, 5 MP camera, 3-axis stabilisation
Universal connector	20-pin STANAG, multiple voltage levels, CANBUS, UART, Ethernet
Anchor points	Swivel eyes and shackle nuts for various loads
Accessories	Simple 4-point mounting system

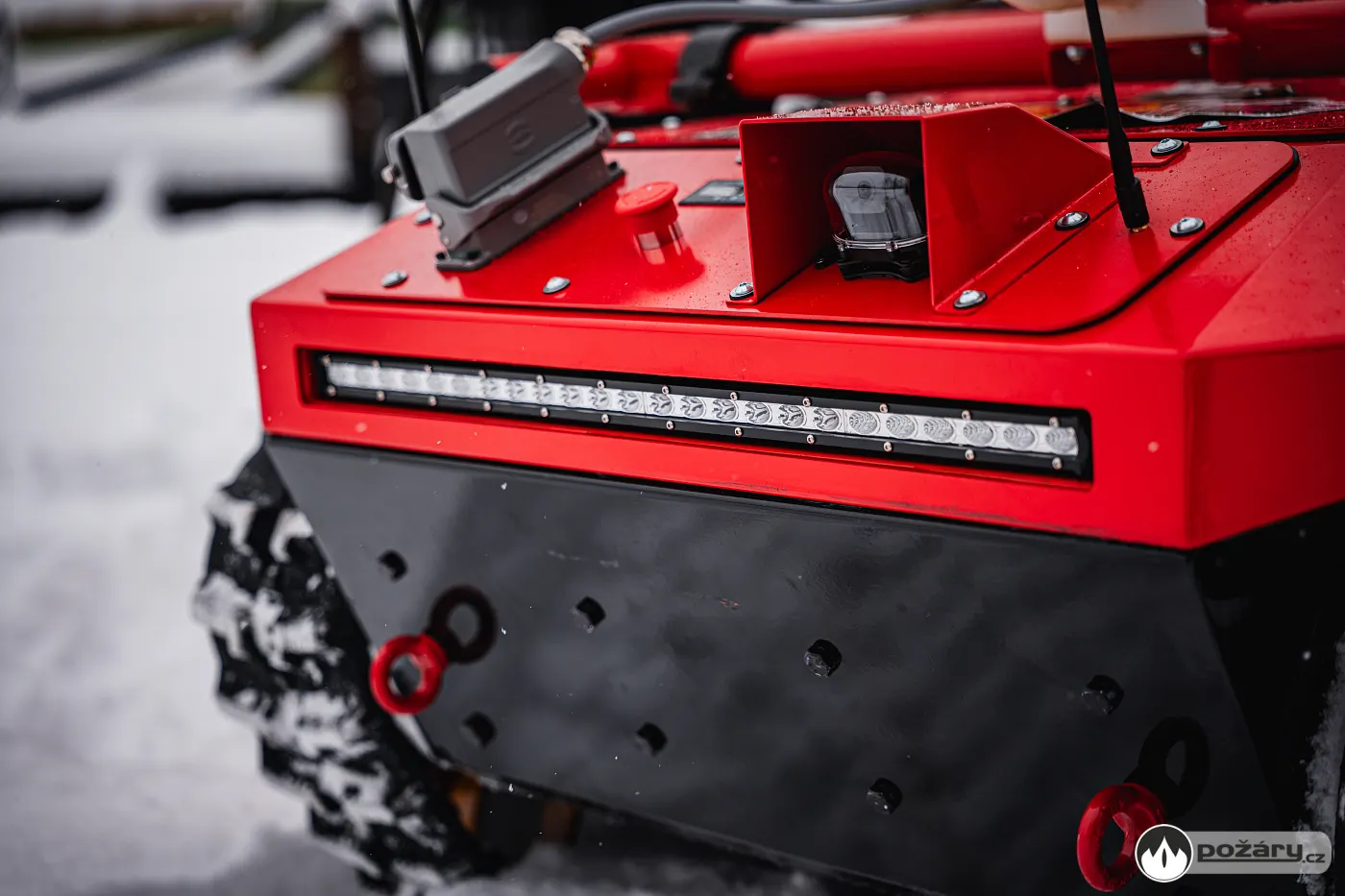

Status signalling	Light and sound for modes and faults

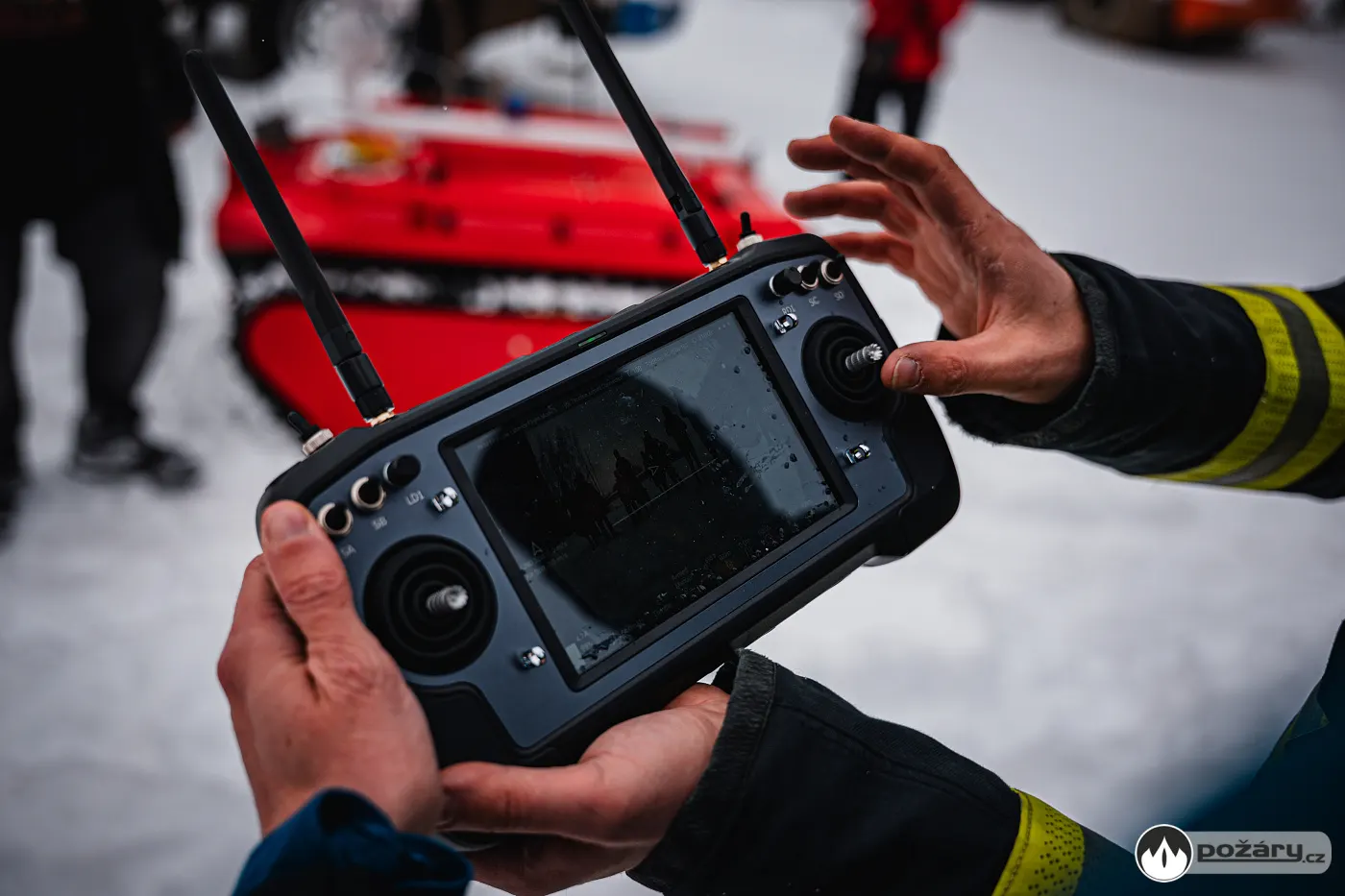

In the box	Logistics module, charger with BMS, remote control
